HVIL High Voltage Connector Wire Harness 1500V DC 120A IP67 Waterproof Energy Storage Power Cable EV Harness

Name: HVIL High Voltage Connector Wire Harness 1500V DC 120A IP67 Waterproof Energy Storage Power Cable EV Harness - fastchargeevse
Price: 6.00 USD
Availability: InStock

Connector Gender ：Male Plug Harness, Female Socket Harness, Male & Female Pair

Cable Length ：30cm, 50cm, 100cm, 150cm, Custom Length

Wire Cross Section (mm²)：25mm², 35mm², 50mm², 70mm²

Rated Voltage ：1500V DC

Rated Current ：120A (depends on wire size)

Safety Feature ：HVIL High Voltage Interlock

Protection Grade ：IP67 Waterproof

Cable Color ：Red (High Voltage)

Housing Color ：Orange + Black

Catagories

EV Charger

New Energy Wire & Cable

EV Wallbox 7kW 11kW 22kW Type 2 Wall Mounted Electric Vehicle Charger with Cable Plug and Play Home EV Charging Station

EV Charger, Home EV Charging Station

Home EV Wallbox 7kW 11kW 22kW Type 2 Wall Mounted Electric Vehicle Charger with Cable

EV Charger, Home EV Charging Station

$170.00

Information

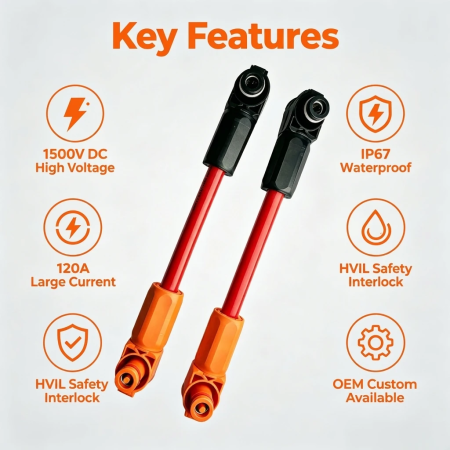

HVIL high voltage connector wire harness, rated 1500V DC / 120A, IP67 waterproof. Built‑in high voltage interlock (HVIL) safety function, orange high‑voltage housing with red cable. For energy storage system, EV battery pack and new energy equipment. OEM custom length & wire size available.

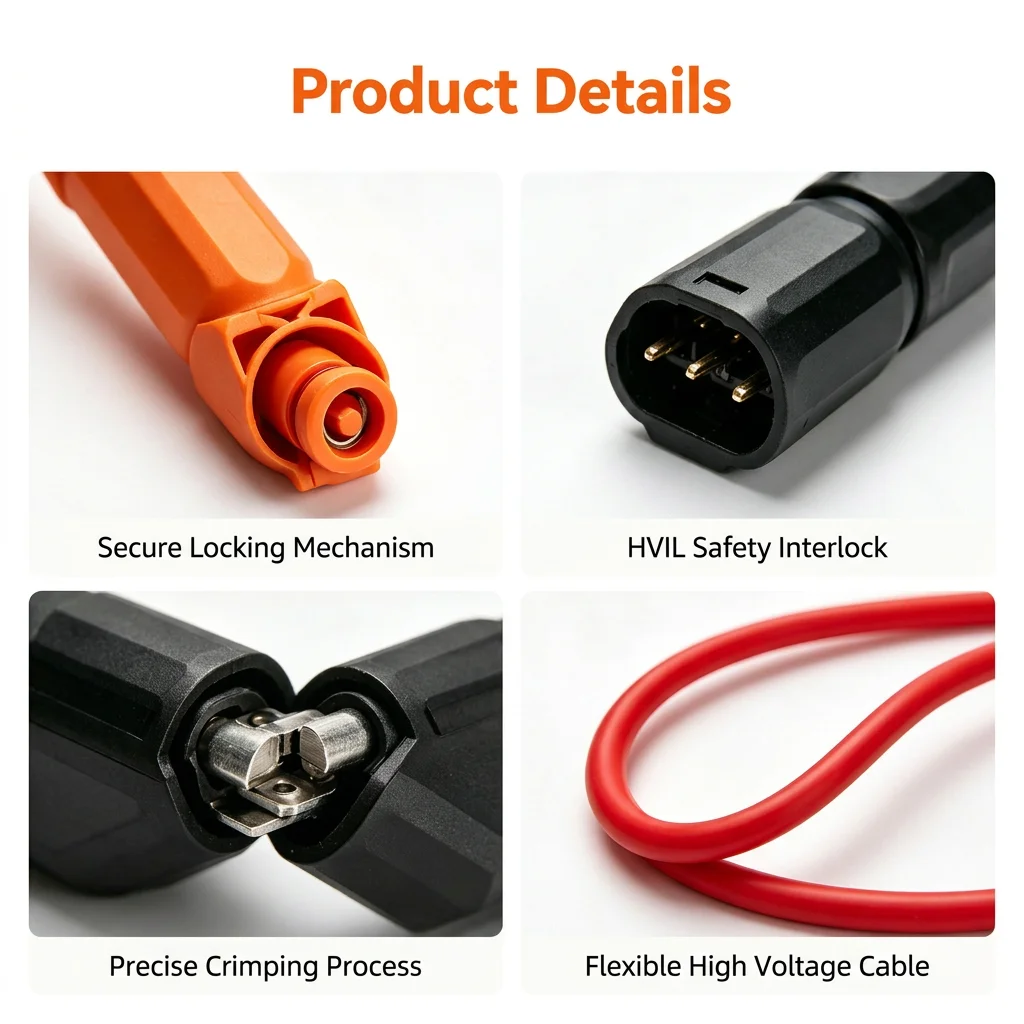

Product Features

1500V DC high voltage rated, 120A large current capacity, designed for energy storage and EV high‑voltage power transmission

Built‑in HVIL (High Voltage Interlock Loop) safety function, automatically cuts power when connector is unplugged, prevents arcing and electric shock

IP67 waterproof and dustproof rating, reliable for outdoor energy storage cabinets and harsh industrial environments

Orange high‑voltage warning color housing, compliant with new energy safety color standards

Silver‑plated copper terminals, low contact resistance, stable conductivity under high current

High‑voltage silicone / XLPE cable, flame retardant, high temperature resistant, anti‑aging

Multiple wire cross sections and cable lengths available, support full custom specifications

Strict high voltage withstand test and insulation resistance test before shipment

Technical Specifications

Rated Voltage: 1500V DC

Rated Current: Up to 120A (varies by wire cross section)

Safety Function: HVIL High Voltage Interlock

Protection Grade: IP67

Wire Cross Section: 25mm² / 35mm² / 50mm² / 70mm²

Cable Material: High voltage silicone / XLPE, flame retardant

Terminal Material: Silver‑plated copper

Housing Material: High strength engineering plastic (orange / black)

Operating Temperature: -40℃ ~ +125℃

Flammability: UL94 V‑0

Order Information

MOQ: 20 pcs, sample order acceptable

Production Lead Time: 10‑15 working days

Shipping Terms: FOB / DDP / DAP

Customization: Cable length, wire size, connector type, labels, heat shrink tube according to your drawing or sample

Certification: CE, RoHS compliant
